  Ideal 18 Parts & Lines
Is that jib furling line a little frayed? Spinnaker pole bent? We've got the parts and lines to keep your boat in tip-top shape.

Please call us to place an order. The phone numbers are listed at the bottom of the page. Prices subject to change without notice.


Ideal 18 Logo
  Line Specifications

Running Rigging Line Diameter x Length Part # Price (US $)
Cunningham 1/4" X 6' 610018 $3.95
Down Haul/Spin Pole 1/4" X 10' 610014 39.95
Jib Furling Line 3/16" X 15' 610021 20.00
Jib Sheet 5/16" X 20' 610019 19.95
Jib Sheet Pennant 3/16" X 12.5' 610056 12.00
Main Halyard 5/16" X 60' 610273 99.95
Main Reef Line 5/16" X 20' 610275 24.95
Main Sheet 5/16" X 45' 610011 30.00
Pole Topping Lift 1/4" X 38' 610063 59.99
Spinnaker Halyard 1/4" X 48' 610062 89.95
Spinnaker Sheets (2) 1/4" X 36' 610061 54.00
Tweekers (pair) 1/4" X 8' 610017 9.00

  Ideal 18 Parts

Photo Item Description Part # Price (US $)
Standing Rigging
Forestay - new style 610269 $50.00
Forestay - old style 610270 $50.00
Lowers 610265 105.00
Uppers 610260 115.00
Turnbuckle Barrel Body/Lower OBR600.1010 39.95
Mast

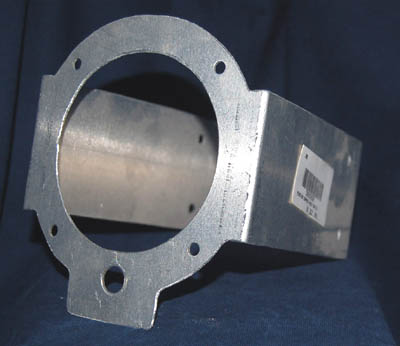

Compass Bracket for Mast 390958 32.95

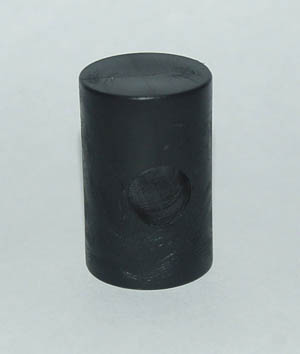

Goose Neck Bearing 610076 9.55

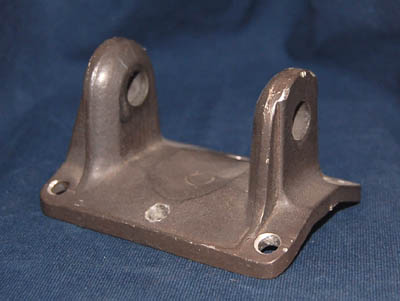

Goose Neck Mast Bracket 610066 39.00

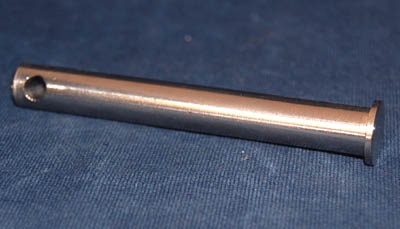

Goose Neck Pin w/o hooks (Stainless Steel) 610071 24.00

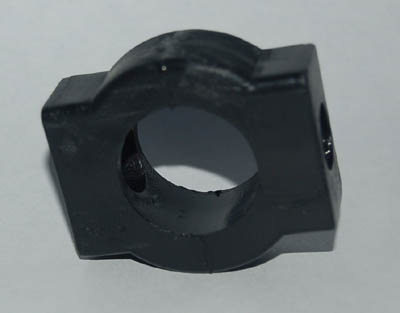

Goose Neck Wedge 610075 9.45

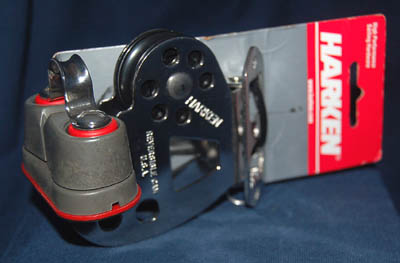

Main Halyard Block HAR 140 89.95

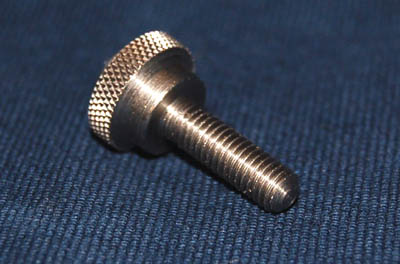

Main Sail Feeder Stop (sailgate) K-45 12.75
Mast Complete 610001 2150.00
Mast Head Assembly Special Order to be quoted

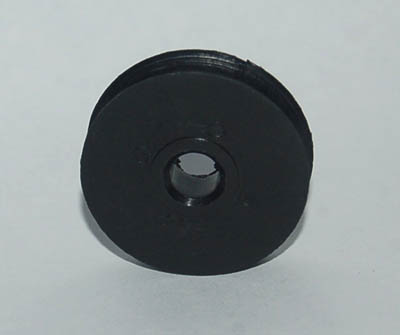

Mast Head Sheave 610002 4.95

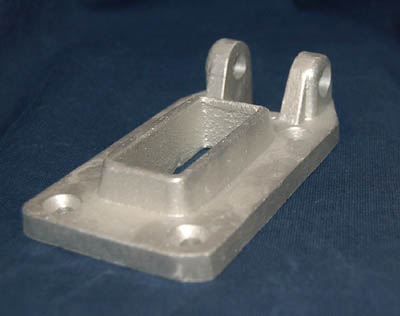

Mast Step Deck Mount 610215 60.00

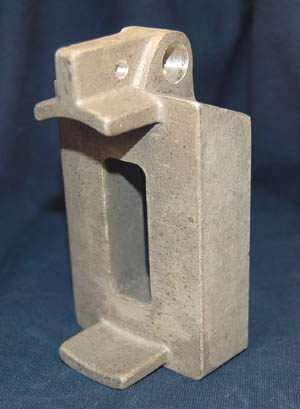

Mast Step Mast Mount 610081 78.95
Shroud Tang (Interior) Special Order to be quoted

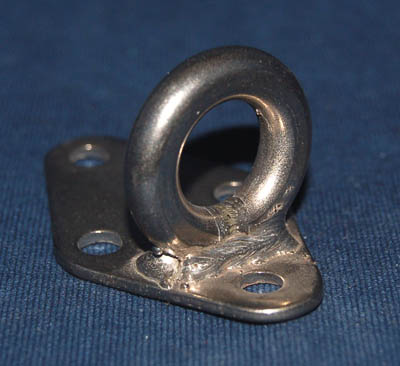

Spectacle 610015 24.95

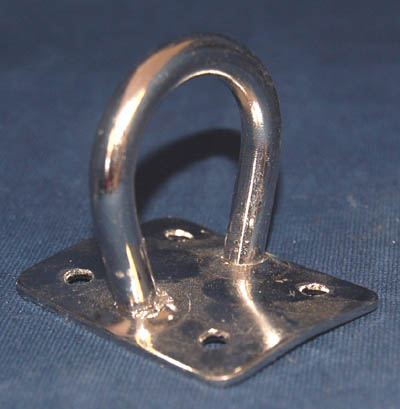

Spin Pole Mast Ring (eye) 610065 24.95

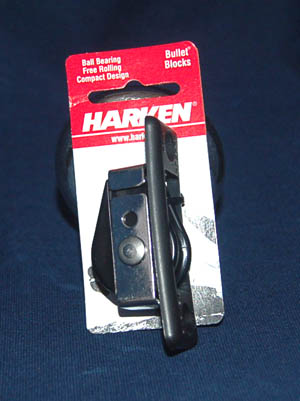

Spinnaker Sheave Box HAR-088 16.95

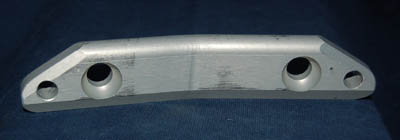

Spreader Bar 610035 75.00

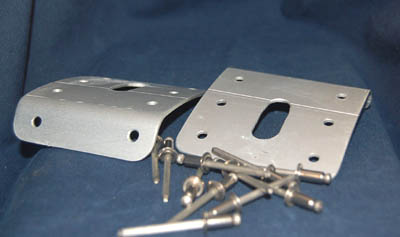

Spreader Doubler Plates 610040 70.00

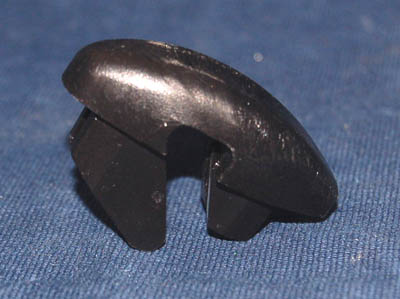

Spreader End Cap 610060 13.75
Spreader Clevis Pin 610041 6.95

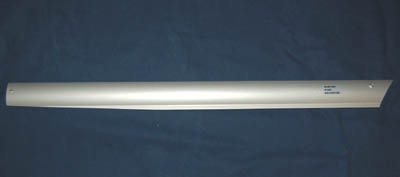

Spreader Port 610050 74.95

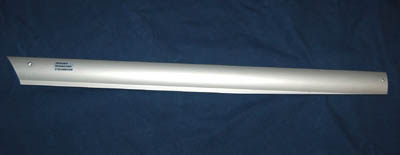

Spreader Starboard 610055 74.95

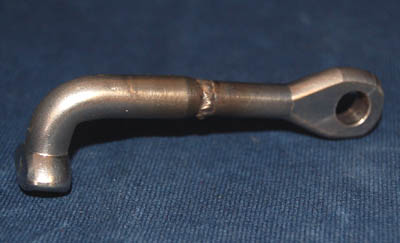

T-Ball for Furling Head - Old Long 610020 39.95

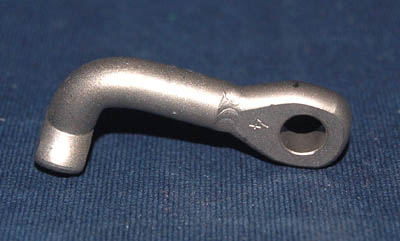

T-Ball for Furling Head - New Short 610023 39.95

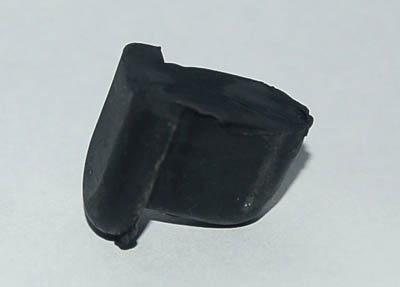

T-Ball Retaining Plugs 742-5 2.50
Topping Lift (Pole) Sheave HAR-088 16.95
Furling System Package
ring ding   n/c

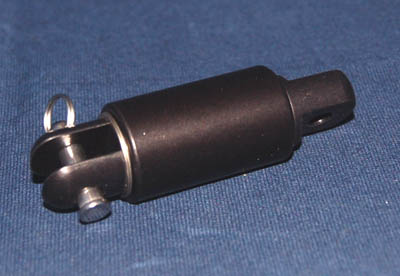

Upper Swivel 1/4" pin HARHSB285 89.95
T-ball fitting 610023 39.95

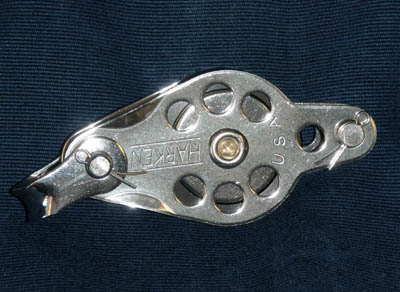

Harken block (dept. 390) HAR313 46.95

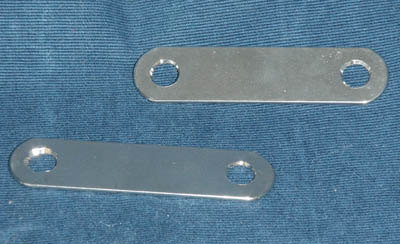

Schaeffer 3" Tang (2 needed) SCH85.23 11.95
bulk line 380006 10.00
5/16" clevis pin CSJCP5.22 3.05
Boom

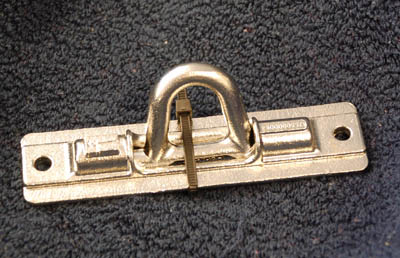

Bails for Vang & Sheet 610125 23.95
Boom Complete 610110 575.00

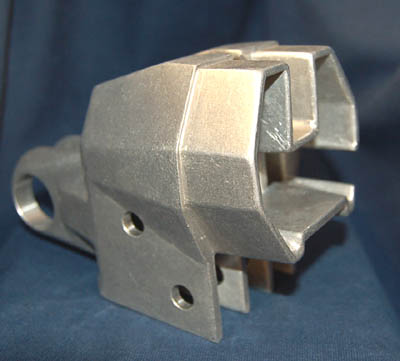

Boom Casting - Inboard 610115 174.95

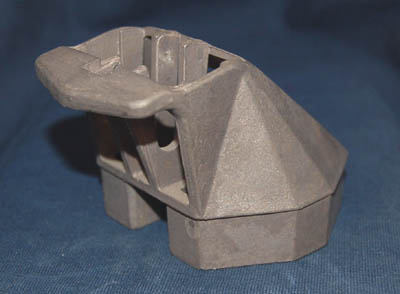

Boom Casting - Outboard 610120 35.04
Mainsheet Boom Blocks HAR146 24.95

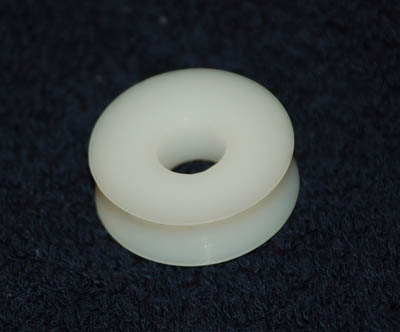

Out Haul Sheave 610130 5.00
Reef Point Rollers Special Order to be quoted
Trailer Parts

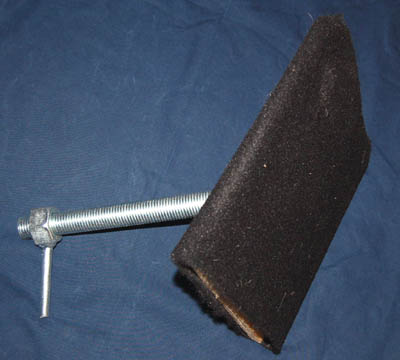

Poppets for M.C. Trailer 615075 70.00

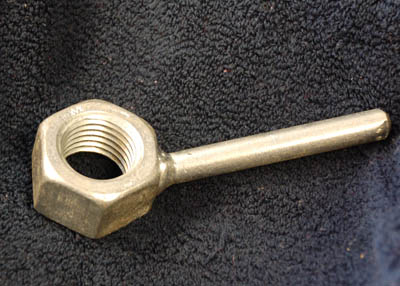

Trailer Poppet Nut 615076 6.95

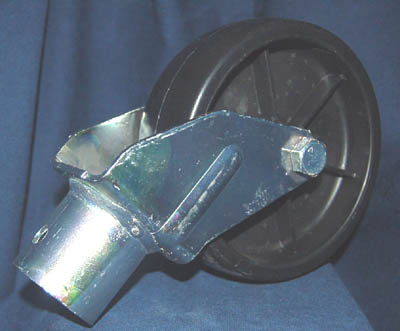

Dolly Wheel for Trailer - 1 3/4" shaft-silver-side crank 6605 29.95

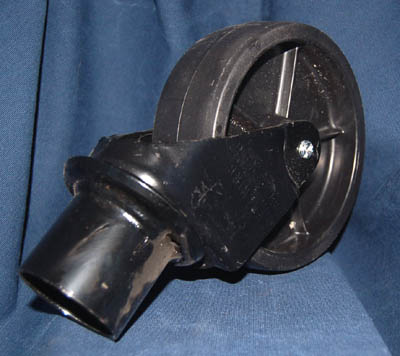

Dolly Wheel for Trailer - 2" shaft-black-top crank A80551 34.95
Canvas Options - standard colors: red, green, blue
Jib Sock, standard colors 610145 175.00
Main Sail Cover, standard colors 610140 205.00
Mast Bag - white vinyl 610156 140.00
Spinnaker Launch Bag 610146 110.00
Tiller Cover, standard colors 610150 50.00
Miscellaneous Parts

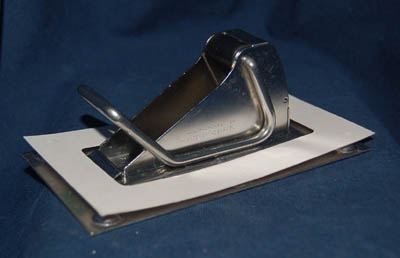

Bailers, Anderson Large 390173 99.95

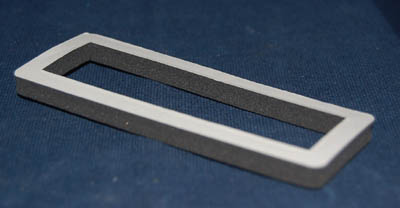

Bailer Gasket 390952 14.95

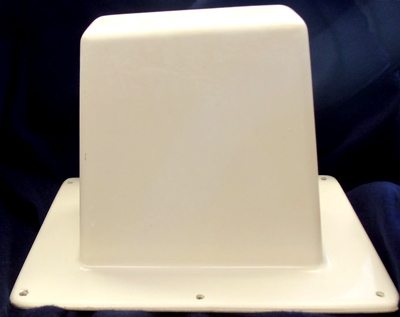

Barney Post 610229 150.00

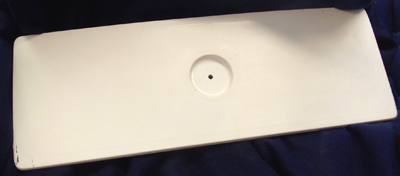

Bilge (Sump) Cover 610185 150.00

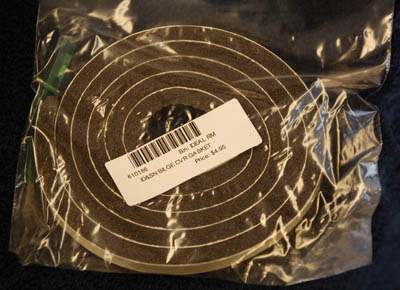

Bilge Cover Gasket 610186 4.95

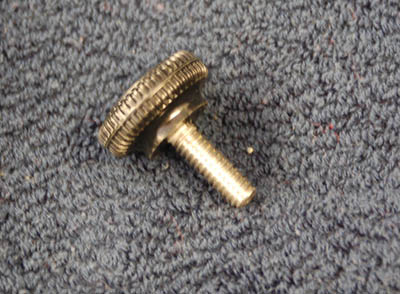

Bilge Cover Screw (black) 1373T57 9.95

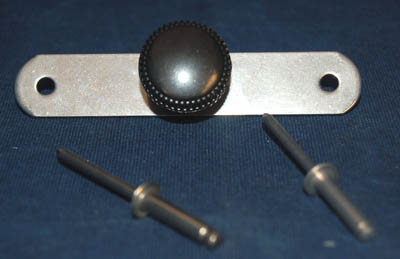

Bilge Cover - T-Bolt Retro Fit Kit 610159 19.95
Bilge - Silver Bar glassed in 610016 22.95

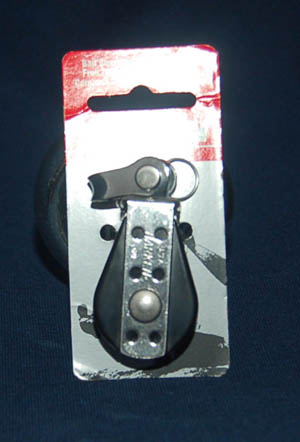

Blocks - Under Deck HAR166 21.95

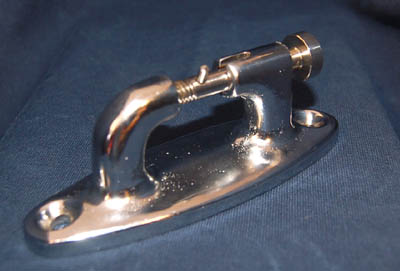

Bow Chocks 610009 92.95

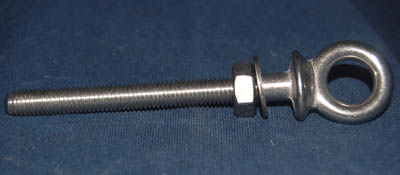

Bow Eye Bolt (fits small & large) 5/8" S.S. WIC6495 42.95

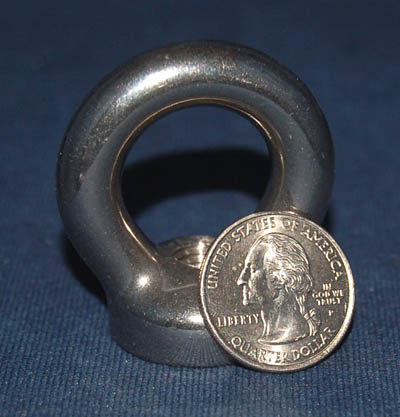

Bow Eye Nut-Larger WIC6355 32.95

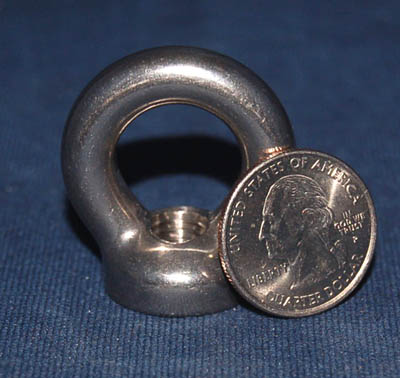

Bow Eye Nut-Standard Size WIC6345 13.95

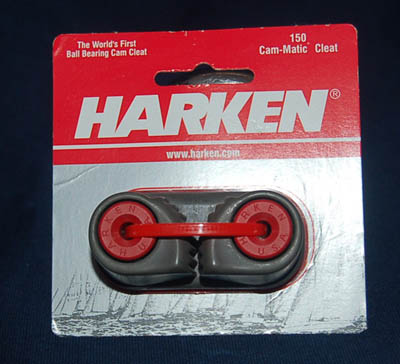

Cleats - Harken HAR 150 33.95
Cleats - Ronstan RON RF5010 25.90
Console Fairlead - Stainless Steel HA339 9.99
Fair Leads - Ronstan RON RF5015 6.95
Gelcoat Hull White Pt. All O.Y. hulls 610230 15.00
Gelcoat Hull White Qt. All O.Y. hulls 610231 30.00
Gelcoat N. White Pt. (Tan) Approx to hull 253 610235 15.00
Gelcoat N. White Qt. (Tan) Approx to hull 253 610236 30.00
Gelcoat Cloud Grey Pt. Approx 254 and up 610238 15.00
Gelcoat Cloud Grey Qt. Approx 254 and up 610234 30.00

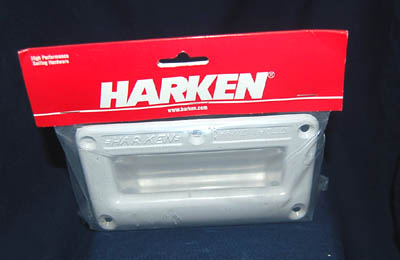

Hand Holds - Plastic HAR-062 10.95

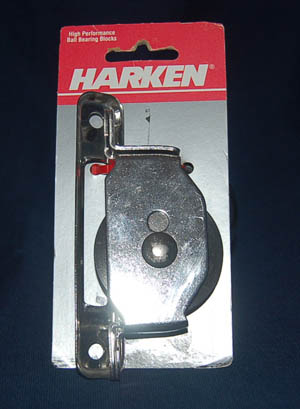

Jib Block - Thru Deck HAR310 59.95

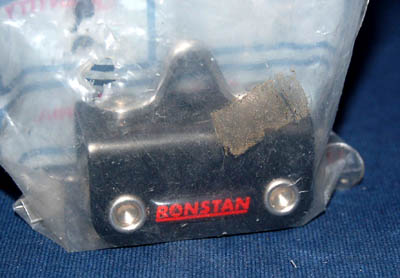

Jib Car RF380 65.00
Jib Car Block HAR166 21.95
Jib Track Special Order to be quoted

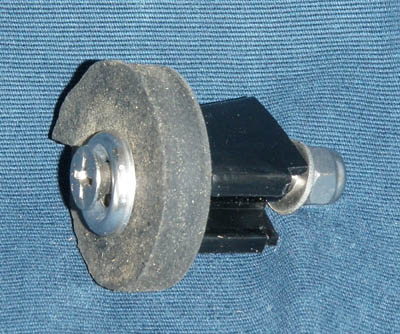

Jib Track Ends Plas. w/ Rub.& Bolt RONRF388 12.95

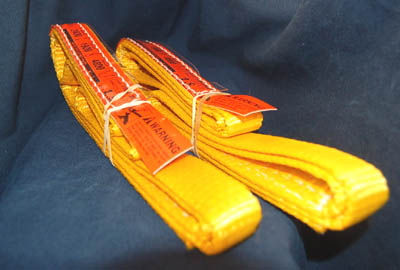

Lifting Bridle (Pair) 601EE202.5 65.00

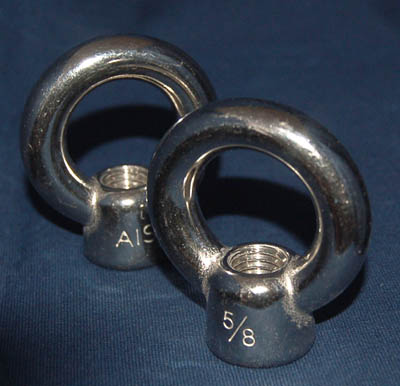

Lifting Ring S.S. 5/8" 9512 5/8" 28.95

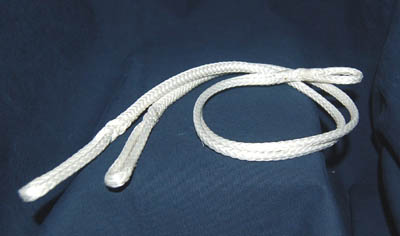

Main Sheet Bridle Rope 610245 34.95

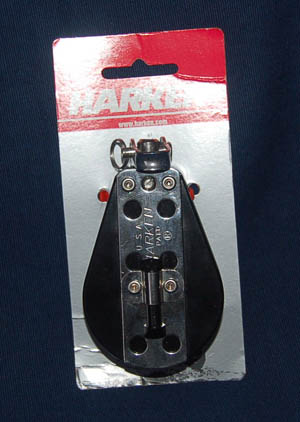

Main Sheet Ratchet HAR019 64.95

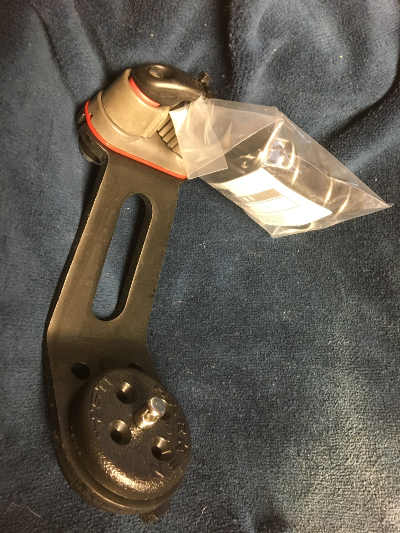

Main Sheet Swivel HAR 205 (144) 94.95

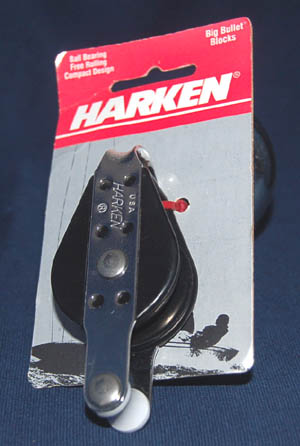

Main Sheet Traveler Block HAR 126 19.45

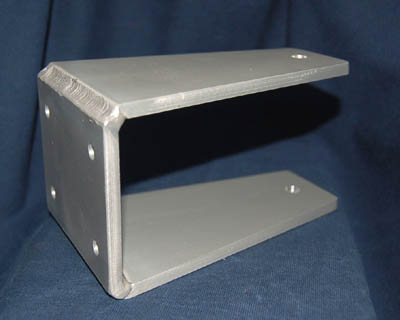

Mast Gate (Partners) 610225 95.00

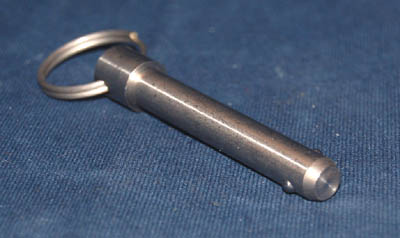

Mast Step Pin 95165A076 24.95

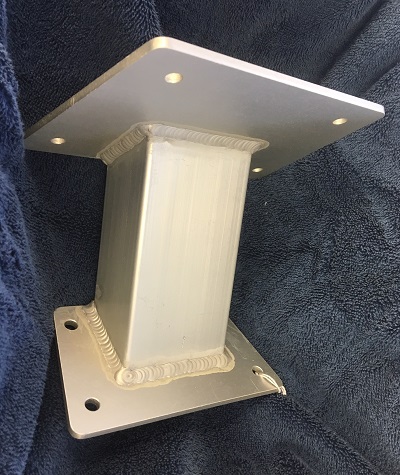

Motor Bracket w/ Mount 610160 175.00

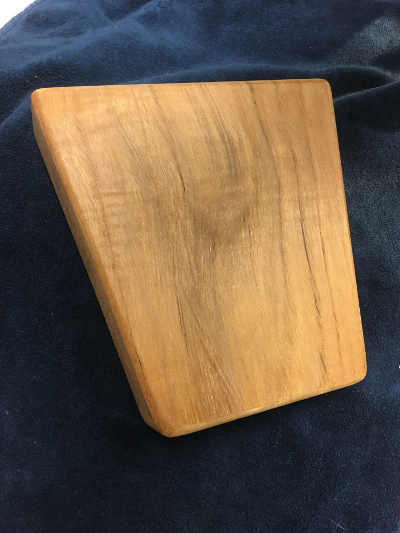

Motor Mount-wood only 610012 49.95

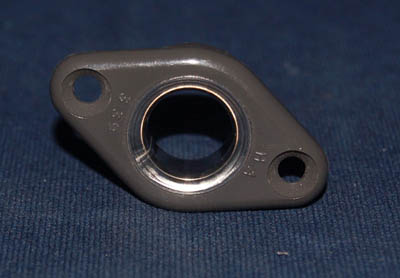

Roller Furling Fairlead - Insert R3044 13.95

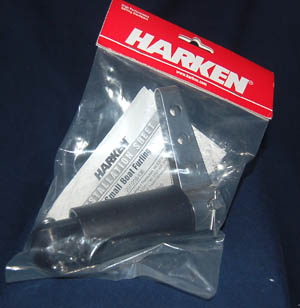

Roller Furling - Upper (old) HAR 207 164.95

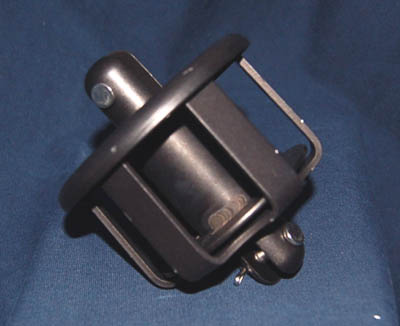

Roller Furling Lower Drum HAR 208 294.95
Rudder 610210 525.00

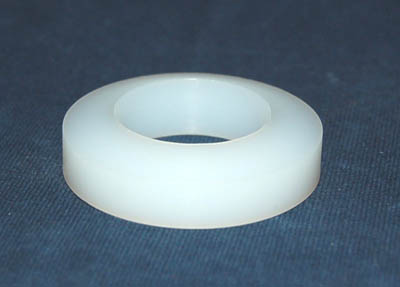

Rudder Bushing 610205 14.00

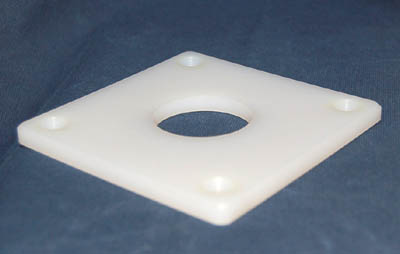

Rudder Cover Plate (Bushing) 610202 24.95

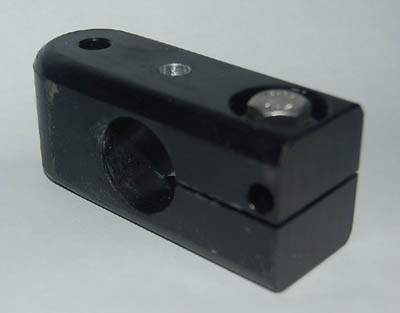

Rudder Head 610200 130.00

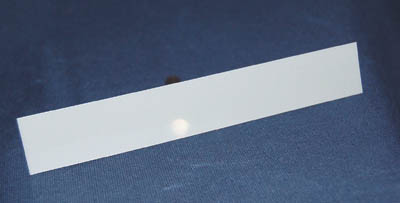

Rudder - Mylar piece 610206 1.00

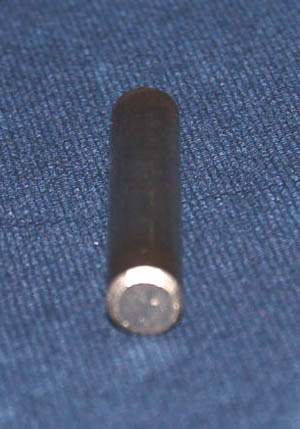

Rudder Pin 610201 6.00

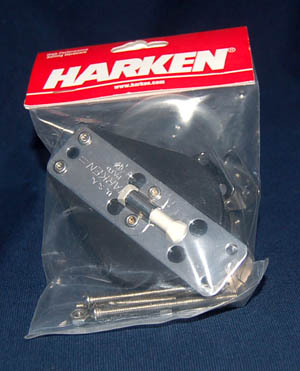

Spinnaker Hex Ratchet Port HAR018 56.95

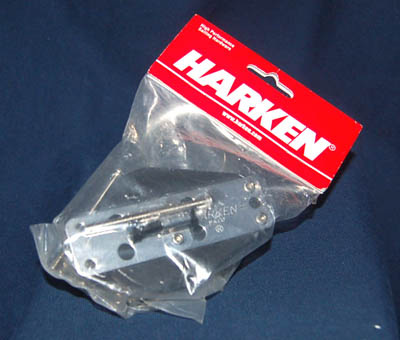

Spinnaker Hex Ratchet Starboard HAR017 54.95

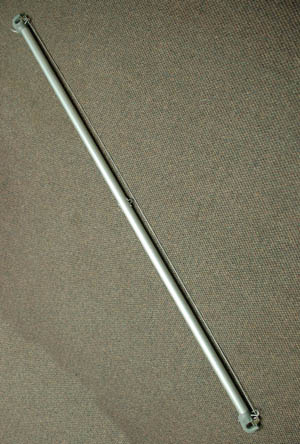

Spinnaker Pole 304100 195.00

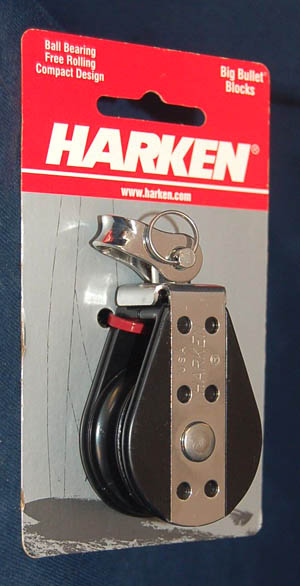

Spinnaker Turning Block HAR168 28.95

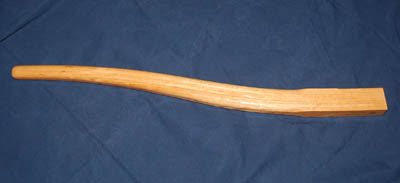

Tiller 610190 125.95

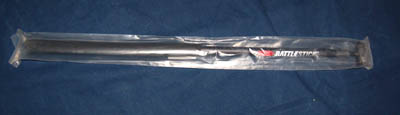

Tiller Extension RONRF3131 89.95

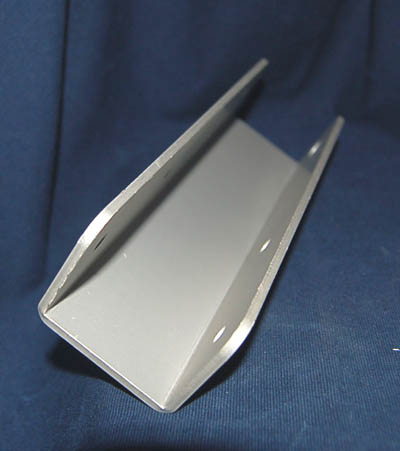

Tiller Head 610195 45.00

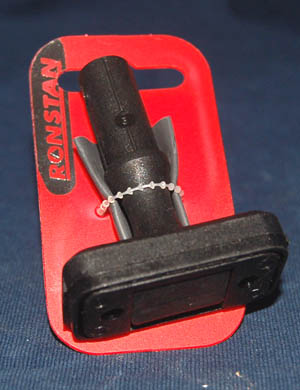

Tiller Joint-Rubber RONRF3133 9.95

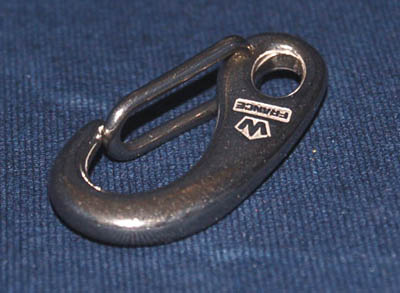

Tweeker Clips/Pole Topping Lift WIC2480 14.95
Vang Block - Lower HAR 053 44.95
Vang Pennant 610247 22.00
Vang Block - Upper HAR 058 128.95
Vang Pennant Block HAR 146 24.95
